Versatility: The telescopic forklift not only has the forklift function of a traditional forklift, but also combines the telescopic arm structure of a truck crane.
Applicable environment: The telescopic forklift is suitable for a variety of environments such as construction sites, industrial enterprises, and agriculture and animal husbandry.
Stability and safety: The long wheelbase, low center of gravity, and stabilizing legs that can be installed on the front of the frame ensure stability and safety on unstable ground.
Mobility: The four-wheel drive and four-wheel steering design improves mobility on muddy, rocky, sandy and snowy ground.
Complete functions: dozens of supporting tools, easy operation, convenient maintenance, and wide range of uses
Impressively versatile, the Hetaifneg telehandlers are the perfect helpers, because whether Stacking or loading material, with our powerful all- rounders and a wide range of attachments, every job is done quickly. The telehandlers can also becomplete with a whole range of additional equipment options. In this way, the machines can be adapted exactly to your needs and enable maximum versatility.
1, Engine: The use of Dongfeng Cummins or Yuchai turbocharged diesel engine, national III emissions, strong power, energy saving and environmental protection, to meet the requirements of efficient operation.
2, transmission: the use of power shift fixed shaft hydraulic transmission, combined conditions of large traction, dual variable system reliable; Twin-turbine torque converter stepless speed change; Single lever control transmission system, front and rear two gears, easy to operate
3, drive axle: using front wheel drive, rigid suspension, rear axle steering structure. The front axle helical bevel gear and the edge planetary wheel decelerate and increase the torque, and the load capacity is large. The transverse hydraulic cylinder steering mechanism is adopted in the rear axle, which is conducive to reducing steering resistance, reducing tire wear and improving ride comfort.
4. Hydraulic system:
1, the use of single pump, switching valve, pilot control working hydraulic system, reduce energy consumption and improve efficiency.
2, full hydraulic coaxial flow amplification steering system, large steering Angle, light and flexible steering.
5, frame, door frame:
1, the use of integral frame, can provide good rigidity and strength, to ensure the chassis of high reliability.
2. The working device is a three-section box-type telescopic working arm, and the telescopic arm adopts a large-section and high-strength box-type structure; The inner arm and the outer arm form a rolling auxiliary connection through the front and back roller support, smooth transmission, reliable work, long life, to meet the requirements of telescopic operation.
3, the basic arm, telescopic arm built-in sprocket chain, hydraulic drive, to ensure the stability of the telescopic device.
6, the shelf:
1. Use quick-change shelf, quick replacement.
2. Hydraulic distance fork, easy adjustment.
3. Cathcart high-strength fork, higher strength, more wear-resistant, can double the life.
7, tires: The use of block deepen heavy forklift solid tires, the rear steering bridge can swing around the center, with good traction performance and through performance.
8. Luxury cab:
1, the use of adjustable direction machine, aviation seat, pilot valve control distribution valve and working device oil circuit, to achieve the work arm lift, telescopic, tilt accurate control, light and flexible operation, comfortable sitting.
2, the use of maintenance-free battery, multi-functional LCD monitor, electronic handbrake, wire using flame retardant materials, cab equipped with fans, radio, heating and cooling air conditioning, comfortable and reliable work.
3, luxury wide vision cab, low noise, good sealing, easy to observe around the driver; At the same time, the rear and rear dual cameras and reversing radar are configured to ensure safer operation.
9. Overview:
It can be used for emptying, packing, forklifting and loading, palletizing and short-distance handling of all kinds of containerized materials in containers. 2, with buckets, hooks, lifting arm and other different accessories for users to choose, install and use.

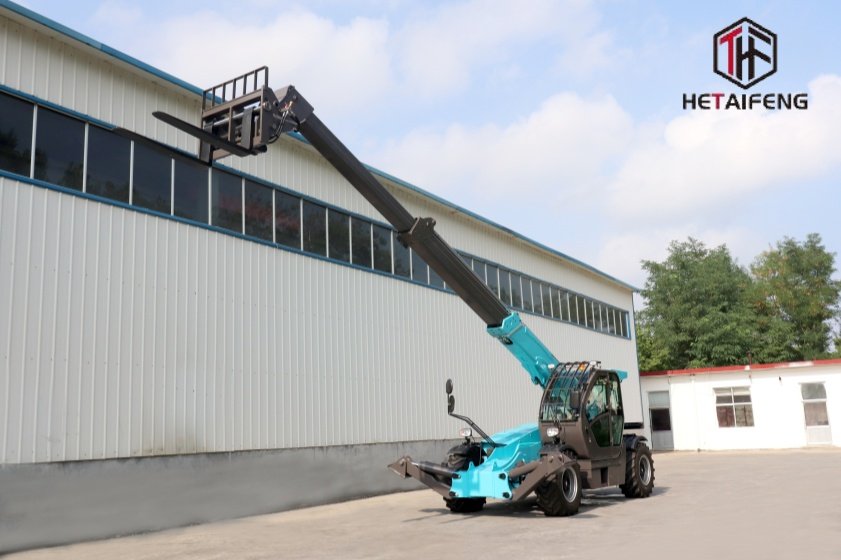

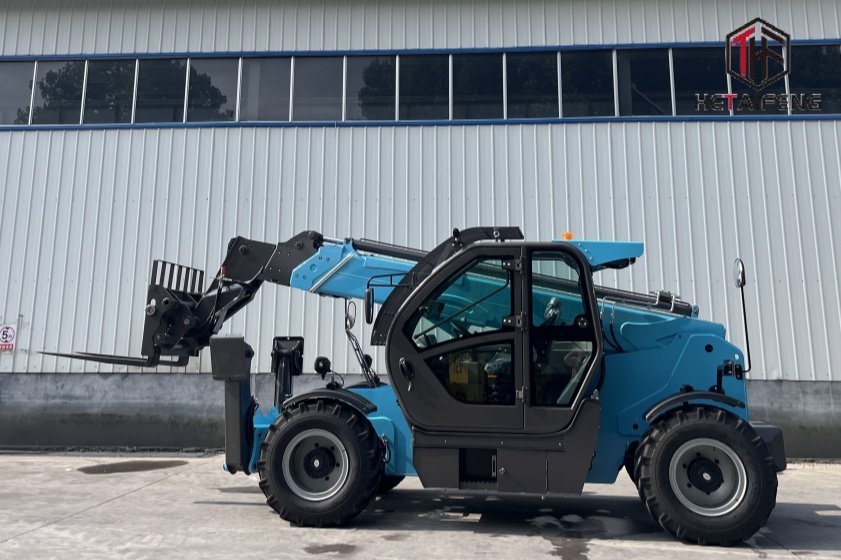

PHOTOS

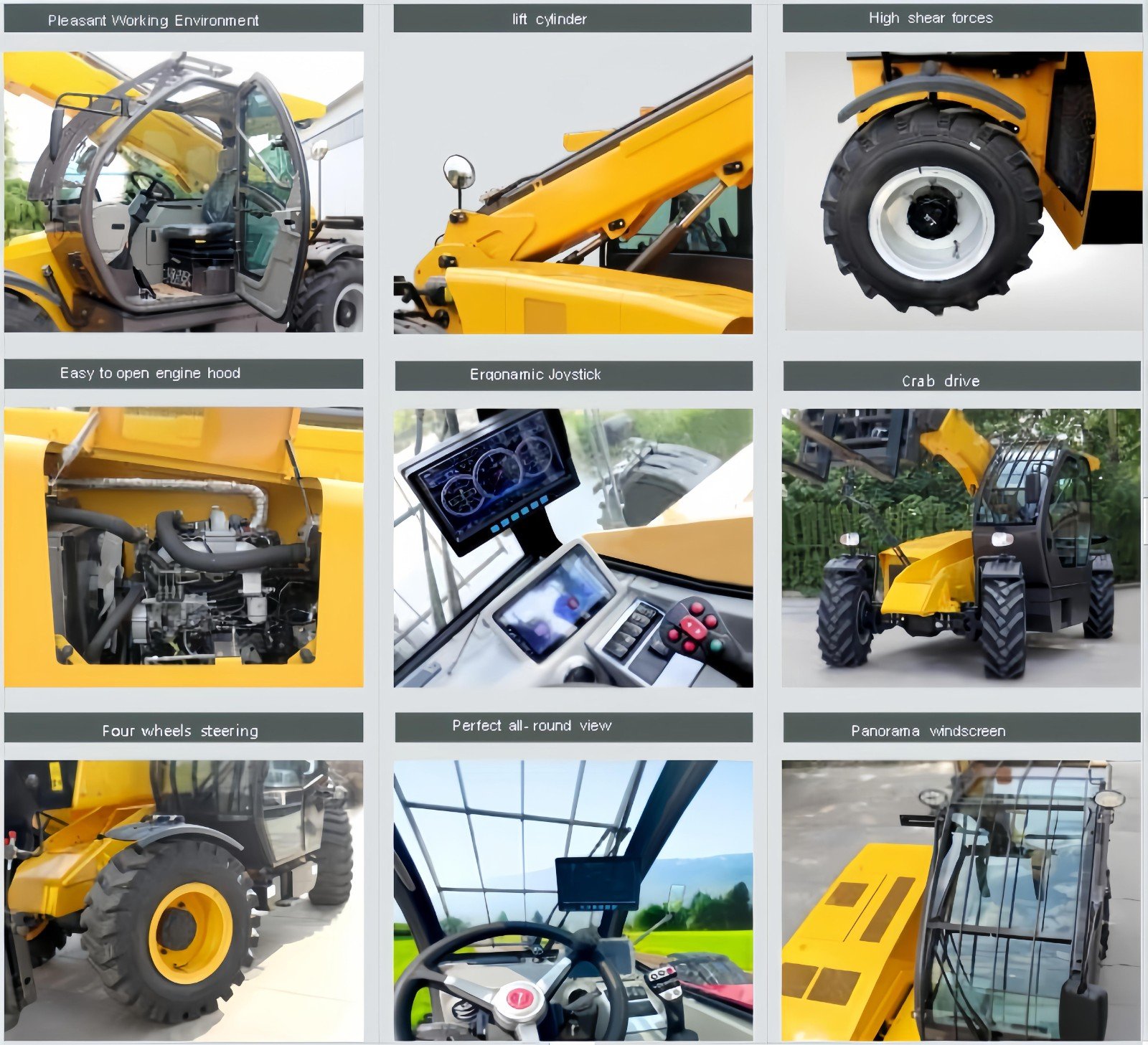

Feature

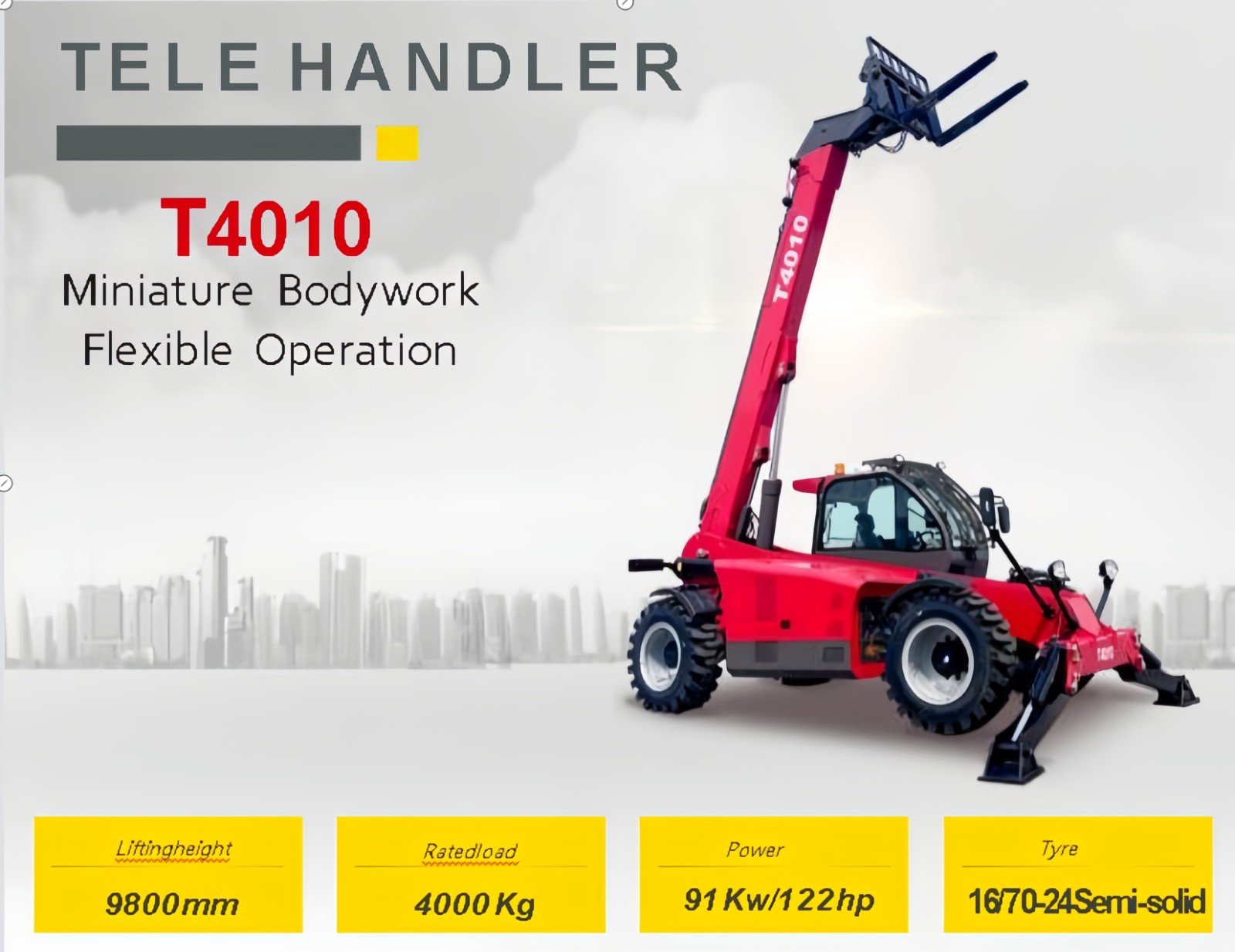

| Capacities | T4010 |
| Max.capacity | 4000 kg |
| Max.lifting height | 9.8m |
| Max.outreach | 4.5m |
| Weight and dimensions | |
| Overall length to carriage | 6.4 m |
| Length to face of forks | 7.62 m |
| Overall width | 2.4m |
| Overall height | 2.55 m |
| Wheelbase | 3.15 m |
| Ground clearance | 0.38 m |
| Overall cab width | 0.84 m |
| Tilt-up angle | 12° |
| Tilt-down angle | 114° |
| Extermal turning radius(over tyres) | 4.1 m |
| Unladen weight(with fork) | 12800 kg |
| Tires type | Semi-solid |
| Standard tires | 16/70-24 |
| Forks length/width/section | 1220 mmx 125 mm/50mm |
| Performances | |
| Lifting | 18s |
| Lowering | 14.4s |
| Extension | 17.9s |
| Retraction | 16.5s |
| Crowd | 5.1s |
| Dump | 4s |
| Engine | |
| Engine brand | Yuchai |
| Engine norm | National lⅡ 国 |
| Max.fuel sulphurcontent | 5000 ppm |
| Engine model | YCD4J22T-125 |
| Number of cylinders/Capacity of cylinders | 4-4400cm³ |
| I.C.Engine power rating-Power | 122 Hp/91 kW |
| Max.torque/Engine rotation | 400 Nm @1400 rpm |
| Drawbar pull(Laden) | |
| Transmission | |
| Transmission type | Torque converter |
| Number of gears(forward /reverse) | 4 / 4 |
| Max.travel speed | 40 km/h |
| Parking brake | Automatic air-cutbrake |
| Service brake | immersed muti-dscsbrakingon front&rear |
| Hydraulics | axles |
| Hydraulic pump type | Gear pump |
| Tank capacities | |
| Engine oil | 55L |
| Hydraulic oil | 95L |
| Fuel tank | |
| Noise and vibration 噪音和振动 | |
| Noise at driving position (LpA) | 82 dB |
| Noise to environment (LwA) | 105 dB |
| Vibration on hands/arms | <250 m/s2 |
| Miscellaneous | |
| Steering wheels (front /rear) | 2 / 2 |
| Drivewheels (front /rear) | 2 / 2 |
| Safety cab homologation | FOPS level2 cab |
