Versatility: The telescopic forklift not only has the forklift function of a traditional forklift, but also combines the telescopic arm structure of a truck crane.
Applicable environment: The telescopic forklift is suitable for a variety of environments such as construction sites, industrial enterprises, and agriculture and animal husbandry.
Stability and safety: The long wheelbase, low center of gravity, and stabilizing legs that can be installed on the front of the frame ensure stability and safety on unstable ground.
Mobility: The four-wheel drive and four-wheel steering design improves mobility on muddy, rocky, sandy and snowy ground.
Complete functions: dozens of supporting tools, easy operation, convenient maintenance, and wide range of uses

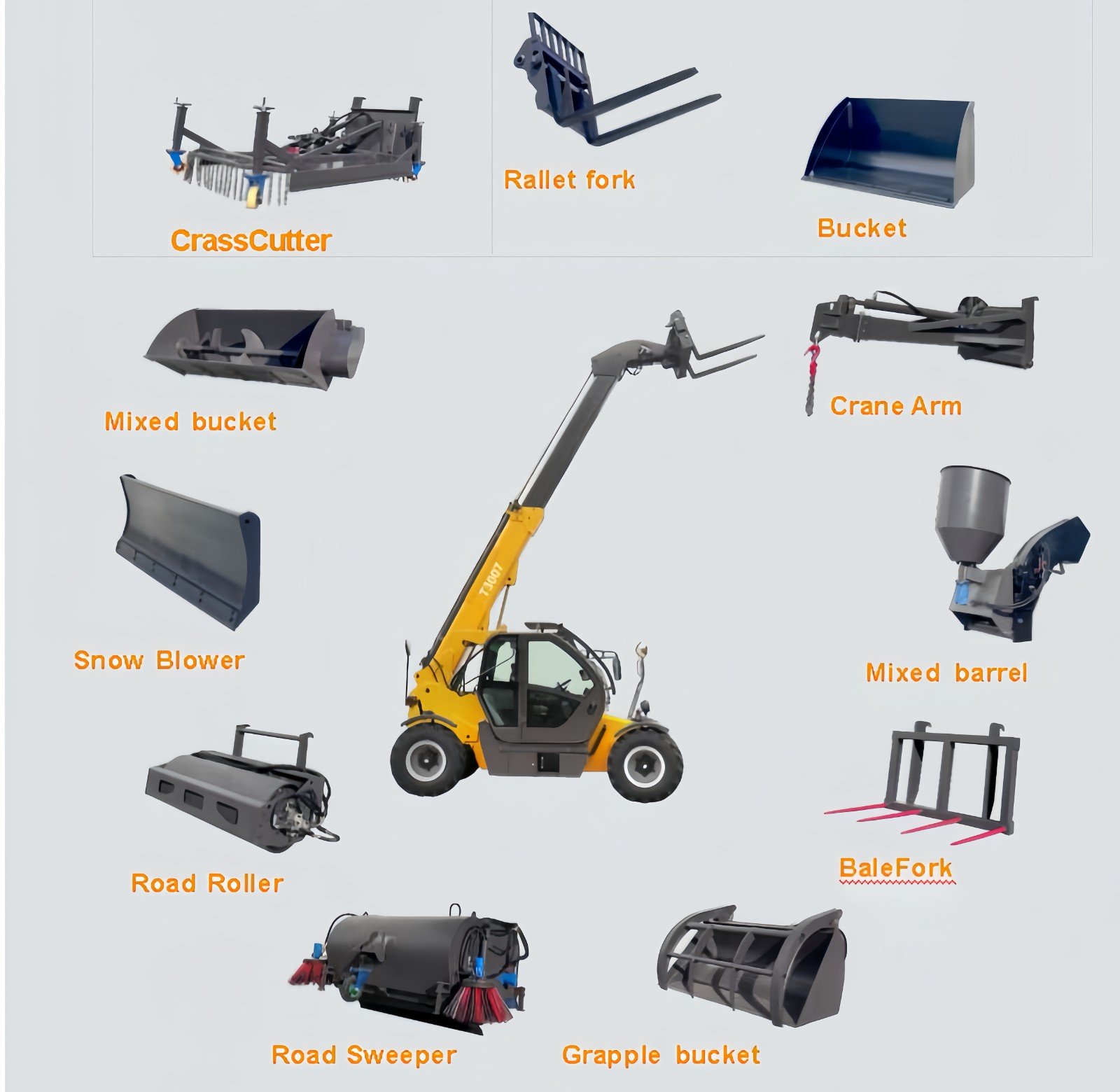

Impressively versatile, the Hetaifneg telehandlers are the perfect helpers, because whether Stacking or loading material, with our powerful all- rounders and a wide range of attachments, every job is done quickly. The telehandlers can also becomplete with a whole range of additional equipment options. In this way, the machines can be adapted exactly to your needs and enable maximum versatility.
Telescopic forklift is a multi-purpose lifting and handling equipment that combines stability and efficiency, and is suitable for a variety of material handling environments. It has the characteristics of compact structure, flexible operation, sensitive lifting, automatic leveling, high net load index, and accurate forklift. The main uses and characteristics of telescopic forklifts include
1. Versatility: Telescopic forklifts not only have the forklift functions of traditional forklifts, but also combine the telescopic arm structure of truck cranes, enabling them to quickly load and unload materials and shovel, thereby expanding the operating functions and operating range and improving the adaptability to the workplace.
2. Stability: The stability of telescopic forklifts has been significantly improved. By moving the center of gravity of the whole vehicle backward and moving the arm to align with the cargo position, this not only helps to improve the stability of the operation, but also helps to improve the stability of the stacking.
3. Applicable environment: Telescopic forklifts are suitable for a variety of environments such as construction sites, industrial enterprises, agriculture and animal husbandry. On construction sites, they can be used for unloading and short-distance transportation of construction materials, as well as the handling of various materials on construction sites and the cleaning and tidying of sites. In industrial enterprises, various materials can be transported on rugged ground. In agriculture and animal husbandry, it can be used for tasks such as carrying hay bales, chopping feed, feeding hay, and cleaning up pasture manure.
4. Special applications: Telescopic forklifts are also suitable for special environments such as hillsides and rugged areas. Stability and safety on unstable ground are guaranteed by its long wheelbase, low center of gravity, and stabilizing legs that can be installed on the front of the frame. In addition, its four-wheel drive and four-wheel steering design improves maneuverability on mud, rocks, sand, and snow.
5.Complete functions: dozens of supporting tools, easy operation, convenient maintenance, and wide range of uses
In summary, telescopic forklifts have become an indispensable and important equipment in many fields such as construction sites, industrial enterprises, agriculture and animal husbandry due to their versatility, high stability, and wide range of applicable environments

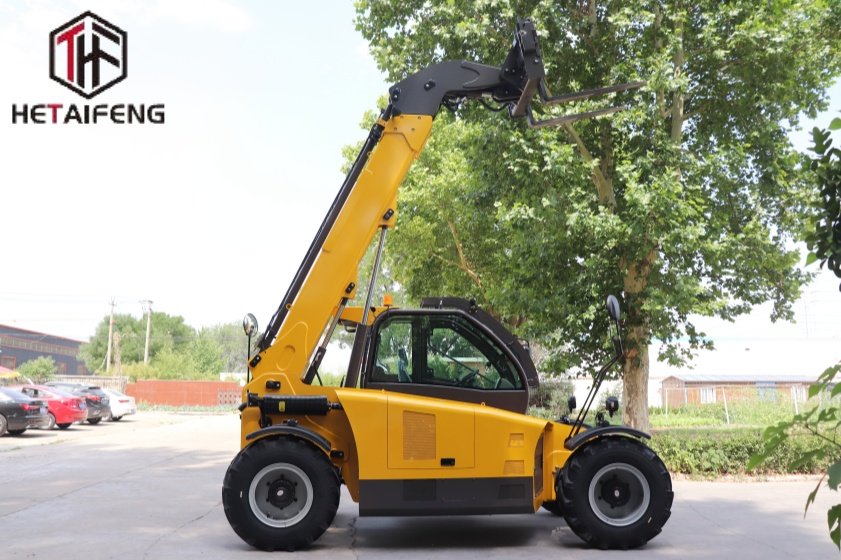

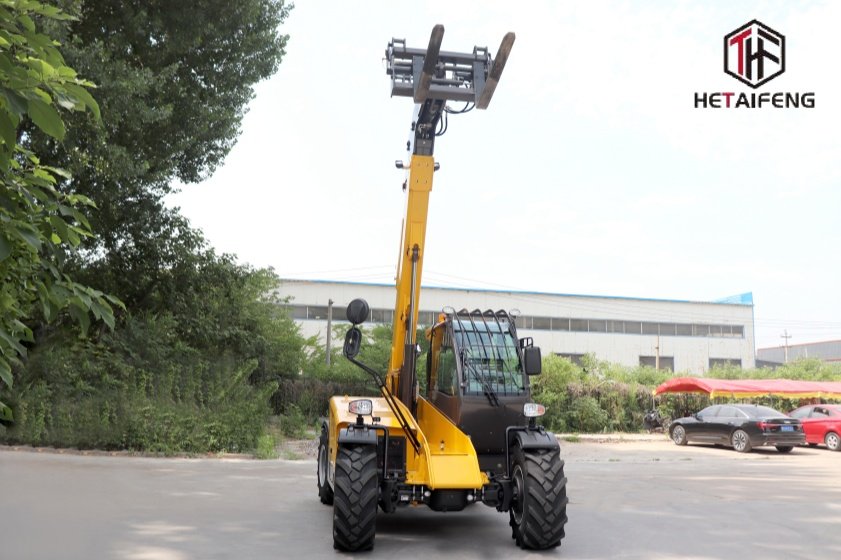

PHOTOS
Paramete

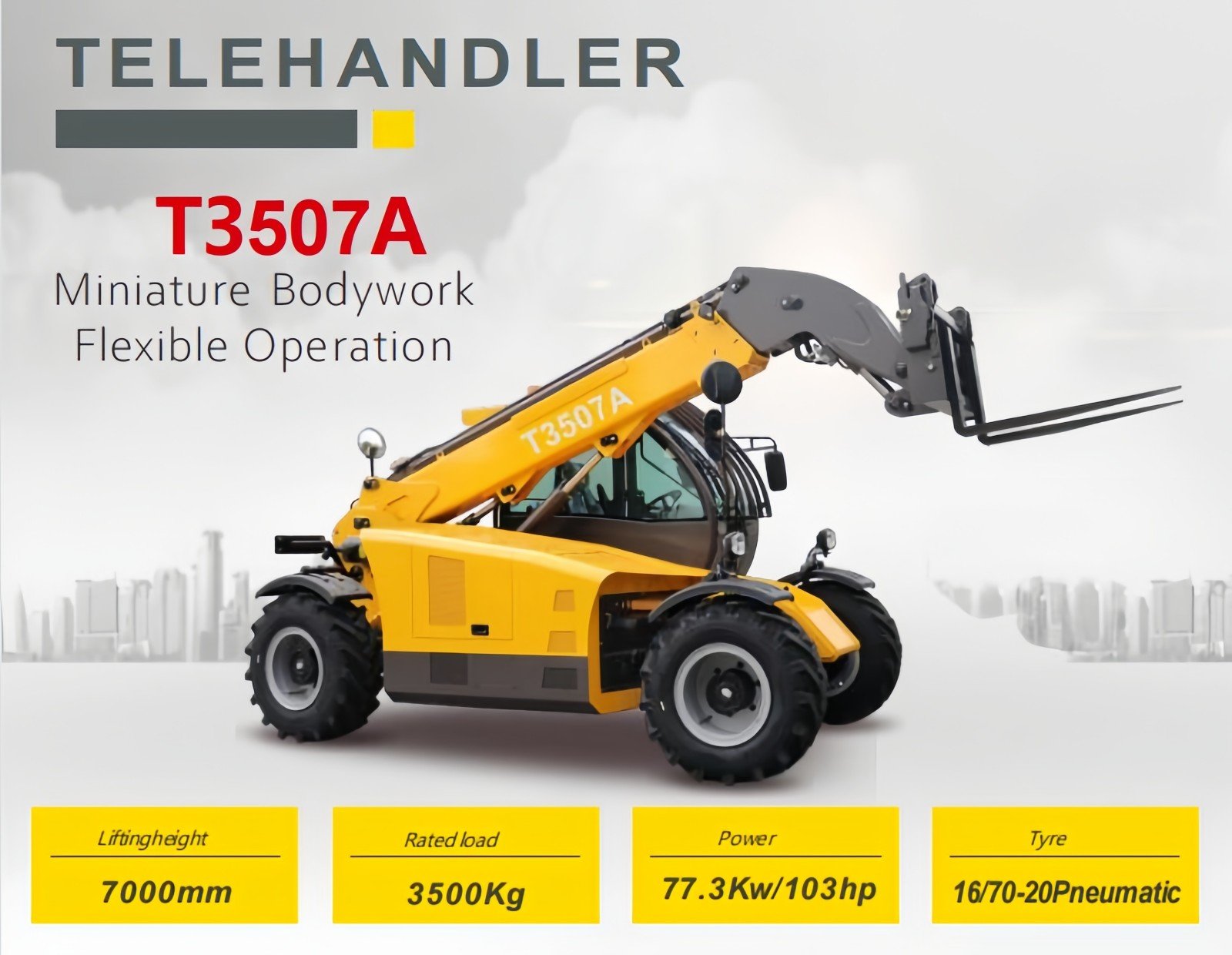

Capacities | T3507A |
Max.capacity | 3500 kg |
Max.lifting height | 7.0 m |
Max.outreach | 3.2m |
Weight and dimensions | |
Overall length to carriage | 4.65m |
Length to face of forks | 5.87 m |
Overall width | 2.2 m |
Overall height | 2.55 m |
Wheelbase | 3.15 m |
Ground clearance | 0.35 m |
Overall cab width | 0.84 m |
Tilt-up angle | 12° |
Tilt-down angle | 114° |
Extermal turning radius(over tyres) | 4.25 m |
Unladen weight(with fork) | 7600 kg |
Tires type | Pneumatic |
Standard tires | 16/70-20 |
Forks length/width/section | 1220 mmx 125 mm/50mm |
Performances | |
Lifting | 10s |
Lowering | 7s |
Extension | 12 s |
Retraction | 8.6 s |
Crowd | 4.8s |
Dump | 3.4 s |
Engine | Yuchai |
Enginenorm | National lⅡ国 |
Max.fuelsulphurcontent | 5000 ppm |
Engine model | YCD4M22T-105 |
Number of cylinders /Capacity of cylinders | 4 -4400cm³ |
I.C. Engine power rating - Power | 103 Hp/77.3 kW |
Max.torque /Engine rotation | 400Nm @1400 rpm |
Drawbar pull(Laden) | 10000 daN |
Transmission | |
Transmission type | Torque converte |
Number of gears (forward /reverse | 2 / 2 |
Max.travel speed | 35 km/h |
Parking brake | Automatic air-cut brake |
Service brake | immersed muti-dscs brakingon front&rear |
Hydraulics | |
Hydraulic pump type | Gear pump |
Hydraulic flow /Pressure | 100 l/min |
Tank capacTankcapacitiesities | |
Engine oil | 55L |
Hydraulic oil | 95L |
Noise and vibration | |
Noise at driving position(LpA) | 82 dB |
Noise to environment (LwA) | 105 dB |
Vibration on hands/arms | <250 m/s² |
Miscellaneous | |
Steering wheels (front /rear) | 2 / 2 |
Drivewheels (front /rear) | 2 / 2 |
Safety cab homologation | FOPS level2 cab |
