Product Details

Impressively  versatile,  the  Hetaifneg  telehandlers  are  the  perfect  helpers, because  whether  Stacking  or  loading  material,  with  our  powerful  all- rounders and a wide range of attachments, every job is done quickly. The telehandlers  can  also   becomplete  with  a  whole   range  of  additional equipment options. In this way, the machines can be adapted exactly to your needs and enable maximum versatility.

     Telescopic forklift is a multi-purpose lifting and handling equipment that combines stability and efficiency, and is suitable for a variety of material handling environments. It has the characteristics of compact structure, flexible operation, sensitive lifting, automatic leveling, high net load index, and accurate forklift. The main uses and characteristics of telescopic forklifts include

1. Versatility: Telescopic forklifts not only have the forklift functions of traditional forklifts, but also combine the telescopic arm structure of truck cranes, enabling them to quickly load and unload materials and shovel, thereby expanding the operating functions and operating range and improving the adaptability to the workplace.

2. Stability: The stability of telescopic forklifts has been significantly improved. By moving the center of gravity of the whole vehicle backward and moving the arm to align with the cargo position, this not only helps to improve the stability of the operation, but also helps to improve the stability of the stacking. ‌

3. Applicable environment: Telescopic forklifts are suitable for a variety of environments such as construction sites, industrial enterprises, agriculture and animal husbandry. On construction sites, they can be used for unloading and short-distance transportation of construction materials, as well as the handling of various materials on construction sites and the cleaning and tidying of sites. In industrial enterprises, various materials can be transported on rugged ground. In agriculture and animal husbandry, it can be used for tasks such as carrying hay bales, chopping feed, feeding hay, and cleaning up pasture manure. ‌

4. Special applications: Telescopic forklifts are also suitable for special environments such as hillsides and rugged areas. Stability and safety on unstable ground are guaranteed by its long wheelbase, low center of gravity, and stabilizing legs that can be installed on the front of the frame. In addition, its four-wheel drive and four-wheel steering design improves maneuverability on mud, rocks, sand, and snow. ‌

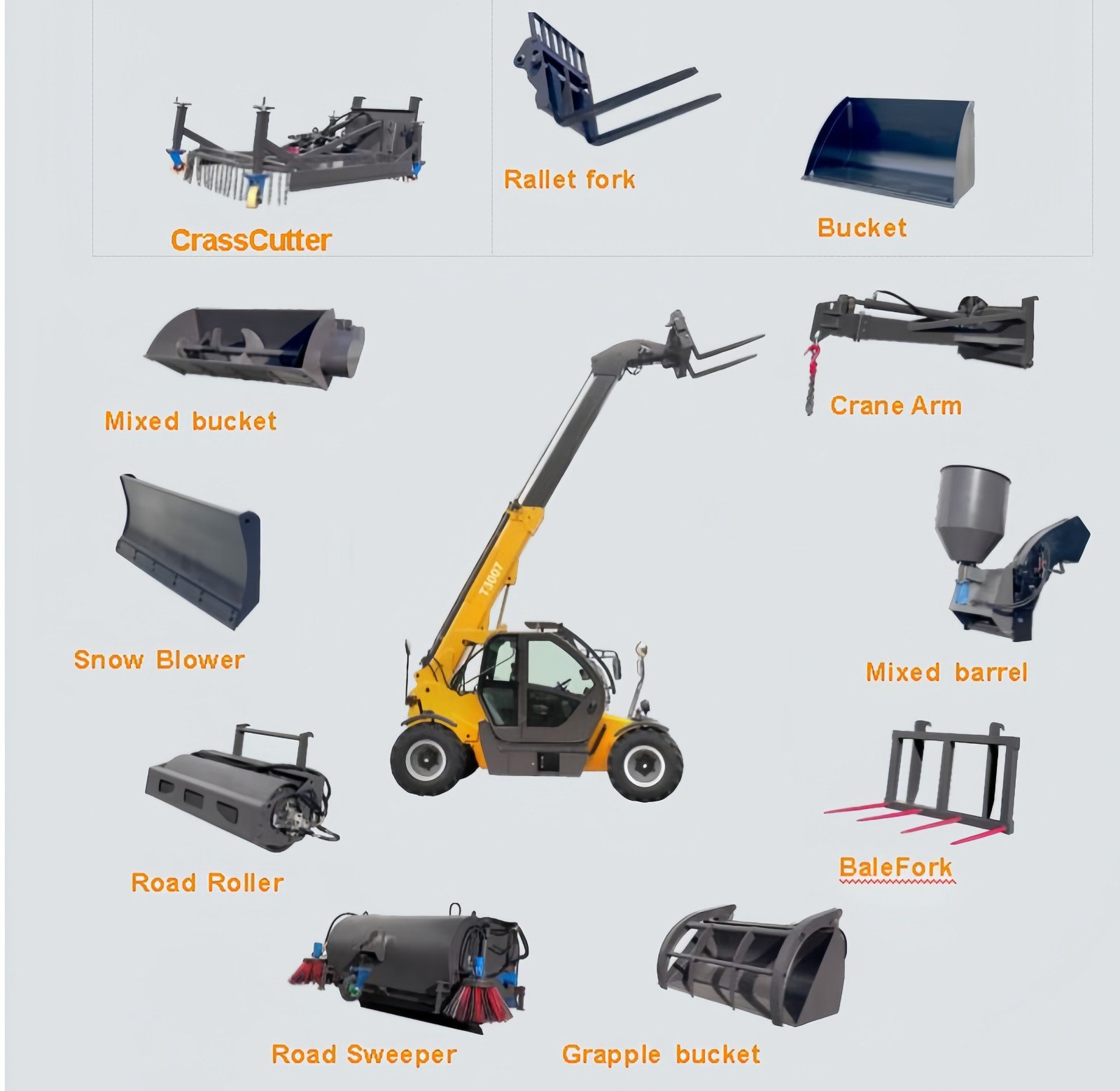

5.Complete functions: dozens of supporting tools, easy operation, convenient maintenance, and wide range of uses

   In summary, telescopic forklifts have become an indispensable and important equipment in many fields such as construction sites, industrial enterprises, agriculture and animal husbandry due to their versatility, high stability, and wide range of applicable environments. ‌

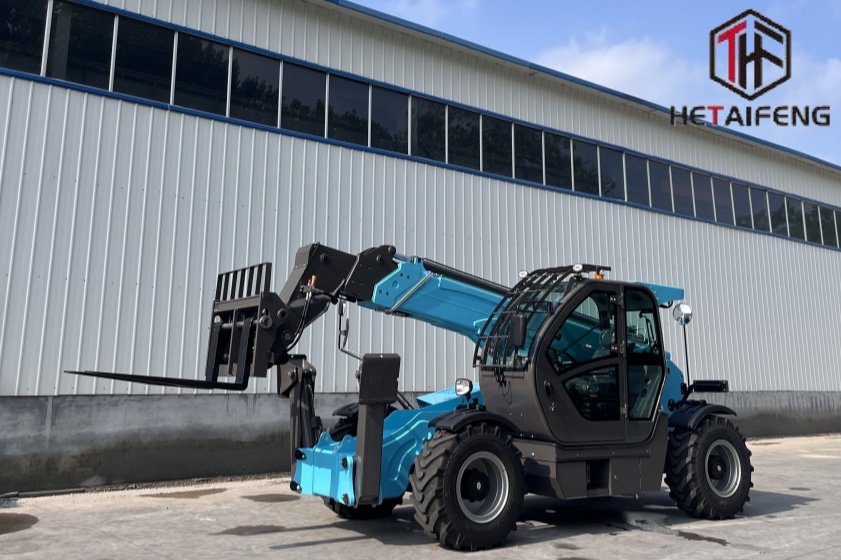

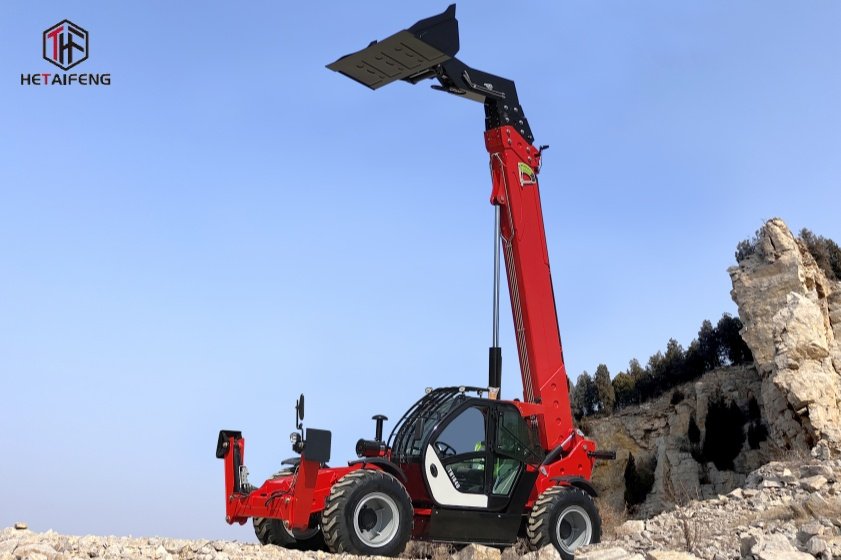

PHOTOS






Feature:

Specification

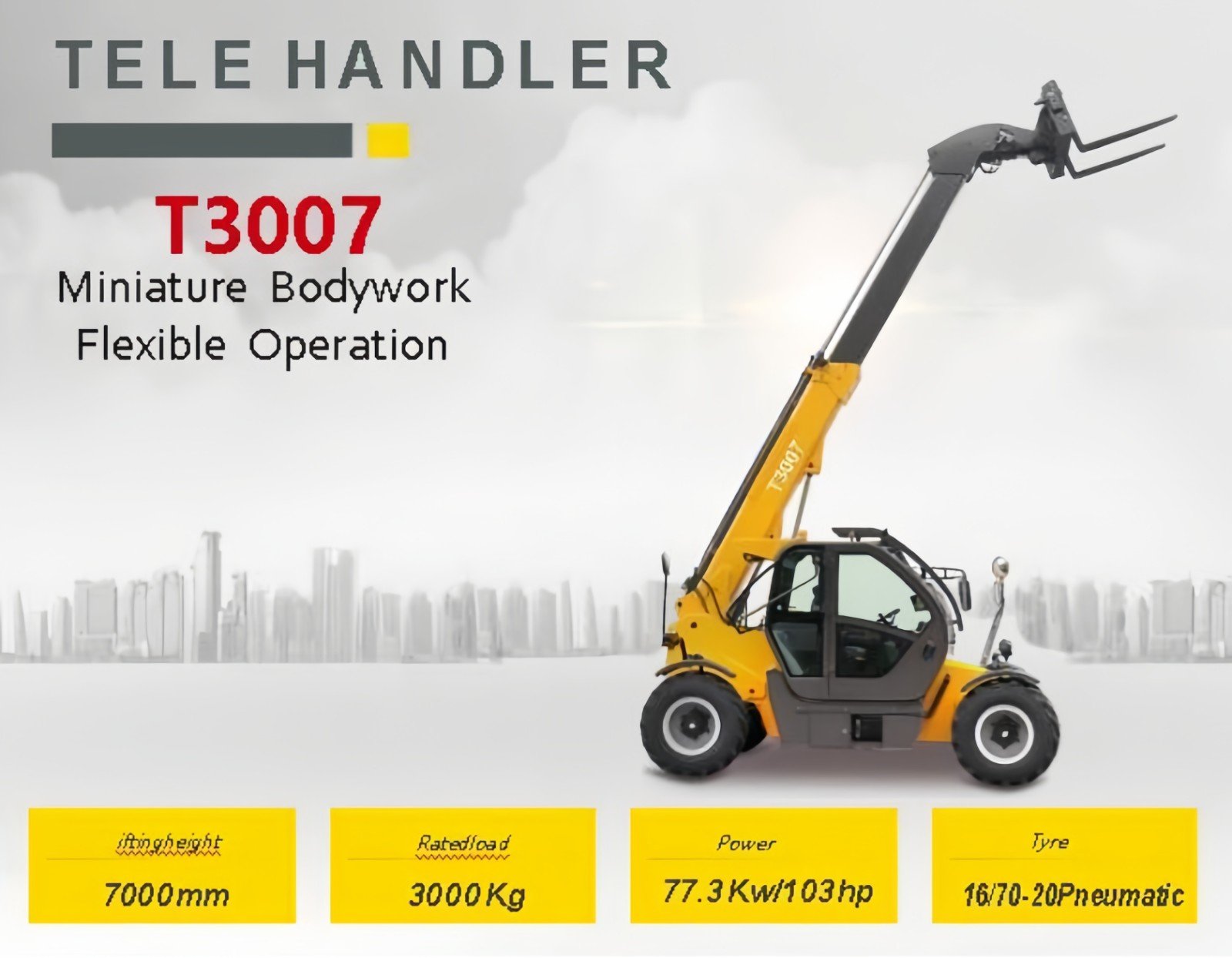

Capacities T3007
Max.capacity 3000kg
Max.lifting height7.0m
Max.outreach3.2m
Weight and dimensions
Overall length to carriage4.65 m
Length toface of forks5.87 m
Overall width2.2 m
Overall height2.55 m
Wheelbase3.15 m
Ground clearance0.35 m
Overall cab width0.84 m
Tilt-up angle12°
Tilt-down angle114°
Extermal turning radius(over tyres)4.25m
Unladen weight(with fork)7600kg
Tires typePneumatic
Standard tires16/70-20
Forks length/width/section1220 mmx 125 mm/50mm
Lifting10s
Lowering7s
Extension12 s
Retraction8.6 s
Crowd4.8s
Dump3.4s
Engine

Engine brandYuchai
Engine normNational
Max.fuel sulphur content5000 ppm
Engine modelYCD4M22T-105
Number of cylinders /Capacity of cylinders4-4400cm³
I.C.Engine powerrating -Power103  Hp/773  kW
Max.torque/Engine rotation400 Nm @1400 rpm
Drawbar pull 10000 daN
Transmission

Transmission typeTorque converter
Number of gears 45324
Max.travelspeed35 km/h
Parking brakeAutomatic air-cut brake
Service brake
immersed muti-dics braking on front&rear
axles
Hydraulic

Hydraulic pump typeGear pump
Hydraulic flow /Pressure100 I/min
Tank capacities

Engine oil55L
Hydraulic oil95L
Fuel tank
Noise and vibration

Noise at driving position(LpA)82 dB
Noise to environment (LwA)105dB
Vibration on hands/arms<250m/s²
Miscellaneous

Steering wheels (front /rear)2/2
Drive wheels (front /rear)2/2
Safety cab homologationFOPS level 2 cab
