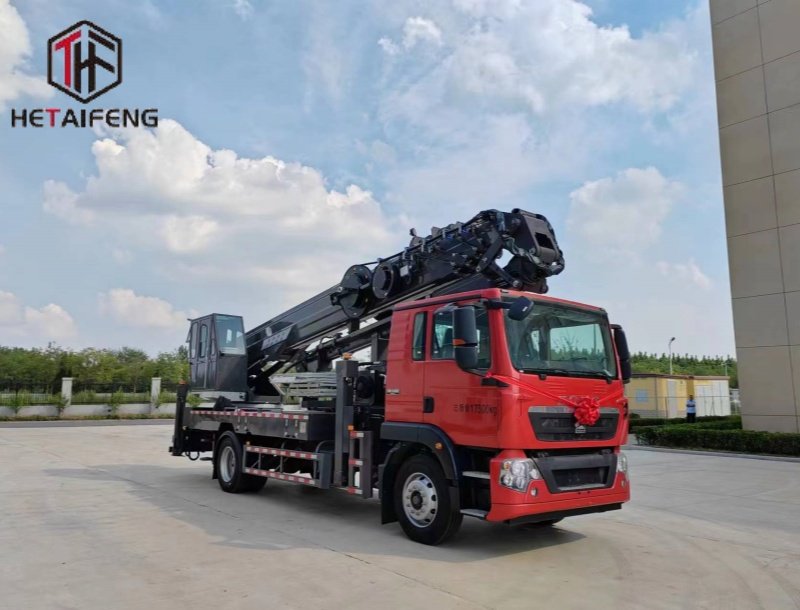

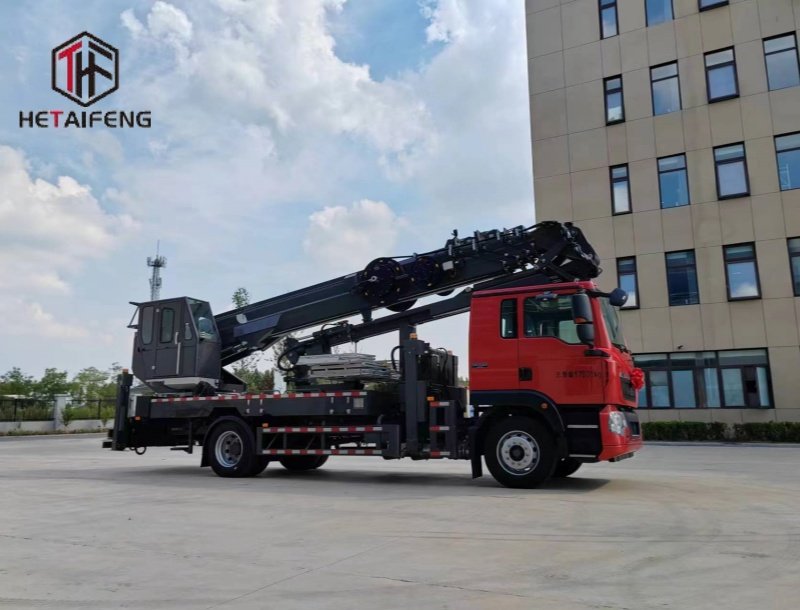

45mVK ladder lift truck work range can reach 45m, Equivalent to 15 floors high building, whole imported from Korea ladder boom ensuring product quality, max. load cargo weight 400KG.
Ladder lift trucks, also called ladder transport trucks, high altitude Transport trucks, ladder loading trucks, and ladder moving trucks, which is mainly used for project rental, waterproof materials lifting, moving company, cement stone moving, construction materials lifting, construction rubbish transport, ship repair, road and bridge maintaining and so on.
45VK Aerial Lift truck (high altitude working truck) is a new product of the HETAIFENG group, set many functions in one machine, specifications, and performance advanced than domestic same-level products. Main features are as follows:
1. lower weight, smaller size
lower weight: as per the Automobile Association report, whole boom lift truck weight each lower by 10%, fuel efficiency can improve by 6%-8%, oil consumption can reduce 7%; whole man lift truck weight each lower 100KG, fuel consumption per 100km can reach 0.3-0.6L, our truck lighter than traditional truck by 40%, so economy improve at least 28%;
whole truck mounted boom lift smaller size, can adapt to narrow workplace , flexible, compact structure, Low center of gravity, higher stability
2. Excellent performance, wider working range
45VK aerial platform truck for sale, max. working height 45m, working specification advanced than domestic same class products. Our machine adopts a section telescopic boom stretch out and draw back at the same time, simple action, easy to operate, quick movement, wide working range; working platform postposition, set pedal for the platform, convenient for workers up and down.
3. Wireless remote control, single-hand operation comfortable and convenient.
Wireless remote control technology, ensures the operator ina narrow workplace, operates flexibly and conveniently, Eliminates blind spots, better working vision, prevents the operator from bearing weather too cold or hot, and can choose a suitable place to fulfill operation; single-hand can finish an all main movement operation.
Parameter
45M-VK Specification | ||||
Item | Unit | Specification | Remark | |
Product Code | 45M-VK | |||
Chassis | Maker, Model | - | SINOTRUK HOWO 162KW | 4X2 |
Wheel Base | mm | 5,000 | ||
Dimensions尺寸 | Overall Length | mm | 9,697 | |
Overall Width | mm | 2,500 | ||
Overall Height | mm | 4,000 | ||
Gross Weight | Ton | 18 | ||
Working | Max. Working Height | m | 45.8 | |
Max. Platform Floor Height | m | 43.5 | ||
Max. Working Radius | m | 29 | Rear, 100kg | |
Max. Working Load | kg | 400 | ||
Max. Person | Person | 2 | ||
Boom | Structure Type | Main Telescopic 5 + Articulated 2 | ||
Outrigger | Front | H-Type | ||
Rear | X-Type | |||
Turntable | Rotation Angle | ° | 360 | |
Platform | L*W*H(Folded) | mm | 1650*1100*330 | |
L*W*H(Unfolded) | mm | 3200*1100*1160 | ||
Rotation Angle | ° | 360 | ||
Hydraulic | Pump Type | Piston Pump 107cc/rev | ||
Control | Emergency | Manual Lever | ||
Platform Control | Wireless Remote Controller | |||
Safety | Overcenter valve | APPLIED | ||
InterLock System | APPLIED | |||
AML System AML | APPLIED | |||
Overload Alarm | APPLIED | |||
Emergency Stop | APPLIED | |||
Name | Brief Description |
Graded leg operation function | Automatically control the amplitude limit based on the state of the horizontal support legs, used for high-altitude operations in limited spaces on narrow roads |
Soft leg automatic protection | When the legs are soft, cutting off the dangerous action of getting on the vehicle is only allowed for safe retraction operations |
Emergency stop device | Set up at the turntable, work platform, and remote control for emergency stop |
Wireless remote control | Wireless remote control operation can be carried out over a large range |
Boarding and alighting intercom wireless device | Implement intercom function (optional) |
Automatic interlocking device for boarding and alighting | Used for boarding and alighting interlocking to prevent danger from accidental operation |
Remote control of throttle size | Setting acceleration buttons can further improve work efficiency |
Engine ignition and shutdown | Engine ignition and shutdown control can be carried out at the turntable and remote control |
Chain breakage protection device | This car adopts a double chain extension and double steel wire rope retraction structure |
Emergency electric pump | When the chassis engine or hydraulic main pump malfunctions, send the staff back to the ground |
Vehicle level status tester | Observing the tilting status of the entire vehicle in both horizontal and vertical directions |
Radiator | Used during high-temperature operations to maintain hydraulic efficiency |
