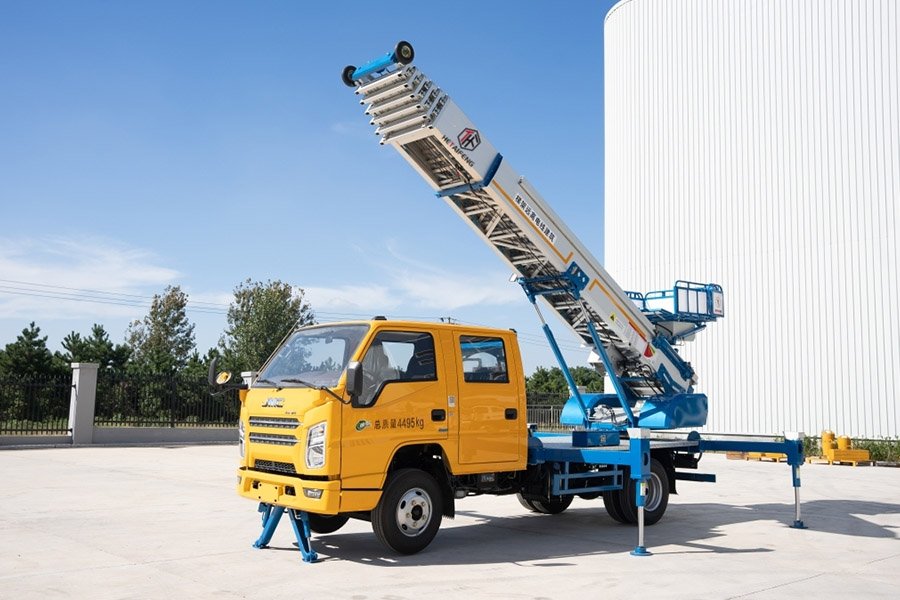

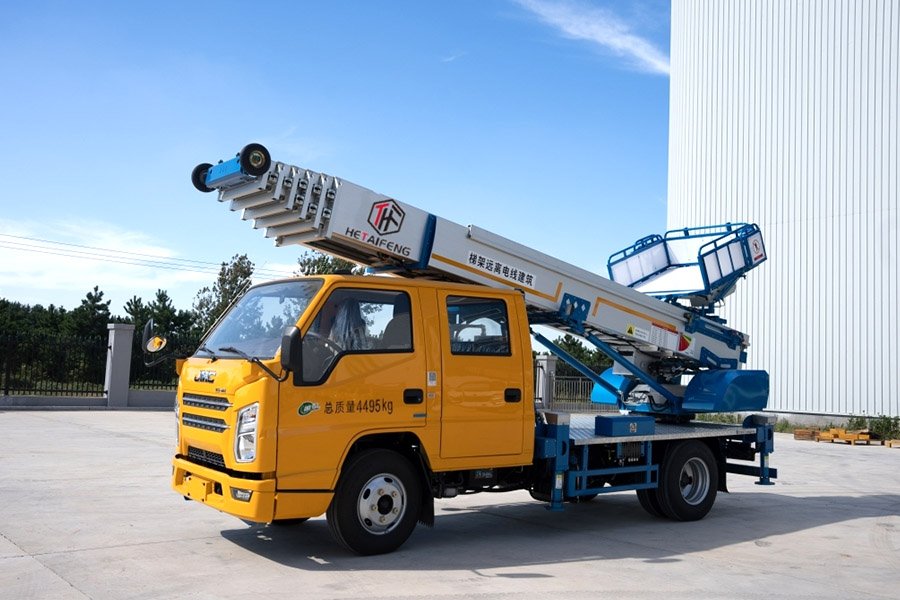

32m ladder lift truck work range can reach 32m, Equivalent to 11 floors high building, whole imported from Korea ladder boom ensuring product quality, max.load cargo weight 400KG.
Ladder lift trucks, also called ladder transport trucks, high altitude Transport trucks, ladder loading-trucks, or ladder moving trucks, which is mainly used for project rental, waterproof materials lifting, moving company, cement stone moving, construction materials lifting, construction rubbish transport, ship repair, road, and bridge maintaining and so on.
32m ladder lift truck work range can reach 32m, Equivalent to 11 floors high building, whole imported from Korea ladder boom ensuring product quality, max. load cargo weight 400 kg.
Technical Parameters:
Category | item | Unit | Data | |
32m | ||||
Size | Total length | mm | 5995 | |
Total width | mm | 1960 | ||
Total height | mm | 3050 | ||
Weight | Total passengers | person | 2 | |
Total weight | kg | 4495 | ||
Curb weight | kg | 4365 | ||
Configuration | Max. working height | m | 32 | |
Basket rated load | kg | 400 | ||
Basket size(STD) length x wide x high | mm | 1000×1200×435 | ||
Basket size(EXT) length x wide | mm | 1870×1635 | ||
Ladder mode | - | Seven-section synchronous telescopic | ||
Rotation angle | ℃ | ±120 | ||
Motor and brake brand | MS/THOTH/ZY | |||
Balance valve | - | REXRTOH/JOY/MT | ||
Outriggers span (full extension) | Lateral | mm | 3880 | |
Longitudinal | mm | 3600 | ||
Driving | Overhang Front/Rear | mm | 1150/1075 | |
Wheel track Front/Rear | mm | 1520/1525 | ||
Wheelbase | mm | 3300 | ||
Max. driving speed | km/h | 110 | ||
Min. ground clearance | mm | 190 | ||
Approach/departure angle | . | 14/10 | ||
Chassis | Chassis model | - | FAW | |
Engine model | - | Q23-132E60 | ||
Max. engine power | KW | 97 | ||
Emission standard | - | GB17691-2018 National VI | ||
Fuel type | - | Diesel | ||
Brake system | - | Air brake | ||
