1. Efficient Mixing and Pumping: our truck mixer pumps integrate mixing and pumping functions in one unit, ensuring efficient mixing and conveying, saving time and labor costs.
2 . High Quality, Affordable Price: Experience the synergy of quality craftsmanship and affordability. We insist on using high-quality materials while ensuring that our products are competitively priced, making your investment worthwhile.
3 . Intelligent Control: Equipped with advanced control systems and intelligent functions, it simplifies the operation process, reduces human errors, and improves construction efficiency.
4. Environmental Protection: adopting energy-saving design and high-efficiency power systems to reduce energy consumption and emissions, in line with modern environmental protection requirements.
Hetaifeng mixer truck pump truck has the characteristics of strong output, large torque, high efficiency and energy saving, and strong off-road performance.
Advantages and highlights:
1. Ultra-safe boom.
2. High-rigidity lower structure.
3. High-performance hydraulic system.
4. Reversing effectively reduces emissions and extends the life of wearing parts.
5. The pumping system adopts electronically controlled reversing, which has faster reversing speed and less system impact.
6. The actual pumping efficiency is more than 5% higher than that of the traditional hydraulic reversing system.

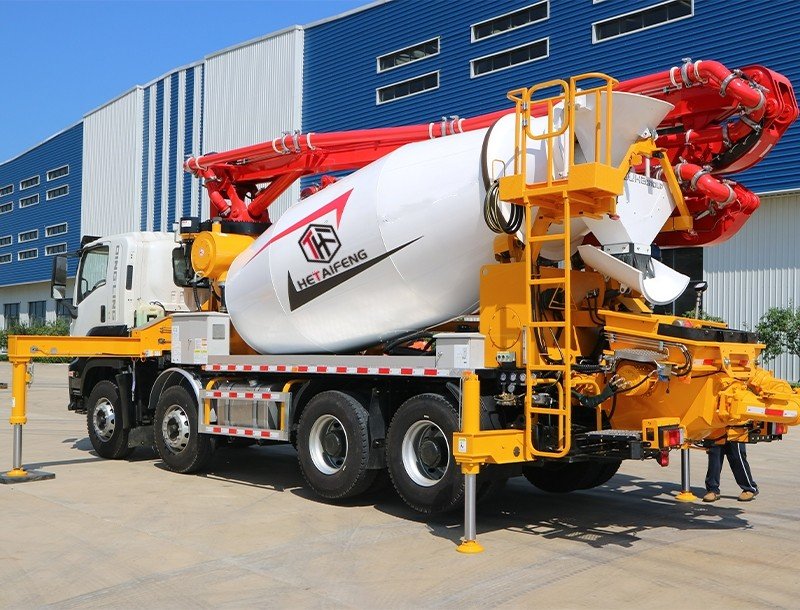

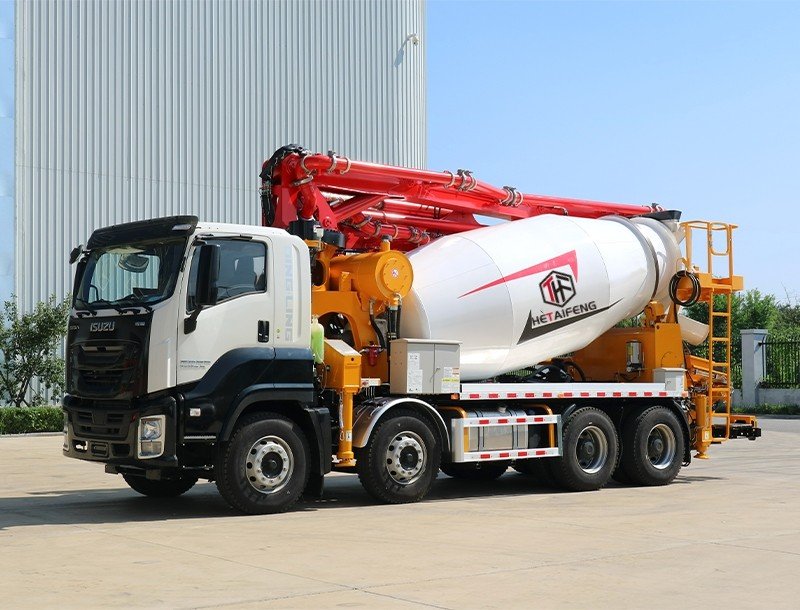

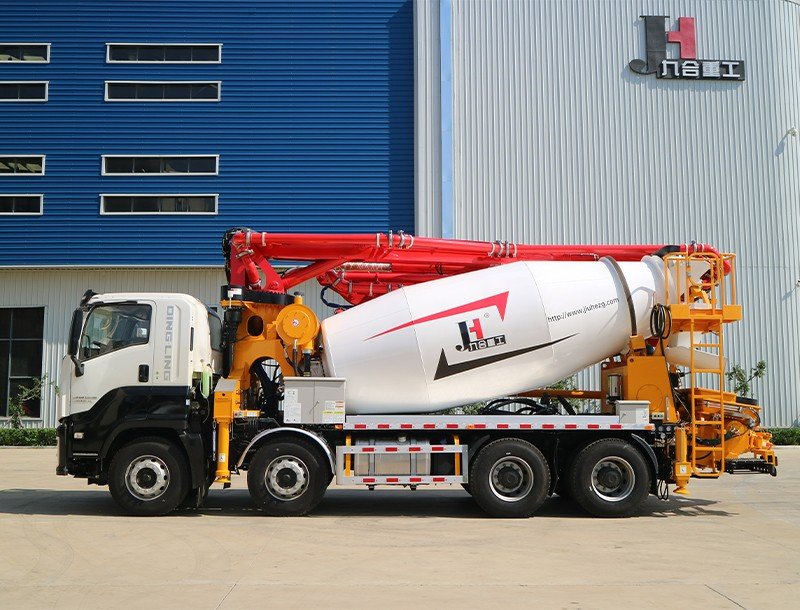

Photos:
Parameter:
1. Boom system | ||
1 | Maximum vertical height of boom (M) | 23.6 |
2 | Horizontal fabric radius of arm (M) | 19.6 |
3 | Fabric Depth(M) | 13.2 |
4 | Boom opening height (M) | 6.8 |
5 | Rotation angle of each arm | 90°/180°/245° |
6 | Boom control mode | Electric ratio |
7 | Arm folding method | Type M |
8 | Turret rotation angle | 470° |
9 | Front outrigger span distance (mm) | 4100 |
10 | Rear outrigger span distance (MM) | 4100 |
11 | Longitudinal distance between front and rear outriggers (mm) | 5850 |
12 | Outrigger opening method | HH |
13 | Tail hose length (MM) | 3000 |
14 | Concrete delivery pipe diameter (MM) | 125 |
2. Electrical control system | ||
1 | Operating voltage | 24V |
3. Hydraulic transmission system | ||
1 | Hydraulic system type | Open |
2 | System working pressure(Mpa) | 31.5 |
3 | Hydraulic oil tank capacity (l) | 350 |
4 | Hydraulic oil cooling method | Air Cooling |
4. Dimensions & Weight | ||
1 | Overall length of vehicle (mm) | 10000 |
2 | Overall width of vehicle (mm) | 2 540 |
3 | Overall height of vehicle (mm) | 3945 |
4 | Vehicle mass (T) | twenty one |
5 | Upper mass (T) | 10.5 |
5. Pumping system | ||
1 | Concrete distribution valve type | S valve |
2 | Maximum theoretical delivery capacity (m³/h) | 60 |
3 | Maximum concrete outlet pressure (Mpa) | 7.9 |
4 | Maximum number of commutations | 31 |
5 | Delivery cylinder inner diameter/stroke | 200/1000 |
6 | Maximum loading height (MM) | 1 45 0 |
7 | Hopper capacity (M 3 ) | 0.6 |
8 | Pumpable concrete slump | 160-220 |
9 | Maximum allowable aggregate size (mm) | 40 |
10 | Lubrication method | Centralized lubrication |
6. Mixing system | ||
1 | Maximum theoretical capacity of mixing tank (m³) | 12 |
2 | Rated theoretical capacity of mixing tank (m³) | 8.5 |
3 | Mixing tank speed (r /min ) | 0-14 |
4 | Water tank capacity (L) | 500 |
