1.361°hydraulic rotary &lifting for operators and their tools.
2.In case of uneven road,it can either extend four outriggers to give support simultaneously or give supportwith only one outrigger,it is easy to operate and use.
3.Move easily,operate simply,large working surface &good balance performance.
4.It is widelyused in such circumstances as stations,docks,public buildings and other high-altitude works
Hetaifeng self-propelled aerial work lifting platform has an automatic walking function. The overall integrated design of the equipment has a built-in battery power supply. It can move freely without external power supply or external power traction under different working conditions. The walking, turning and lifting of the equipment can be completed by one person. The operator only needs to master the control handle in front of the equipment to complete the equipment's forward, backward, turning, fast and slow walking and lifting and lowering. Huaju's self-propelled aerial work lifting platform is flexible, easy to operate, labor-saving and labor-saving, making aerial work more convenient and fast. It is an ideal aerial work lifting machinery equipment for efficient and safe production of modern enterprises. Hetaifeng aerial work platform manufacturer looks forward to a win-win cooperation with you.
Tips for the use and maintenance of hydraulic lifting platforms:
1. When the equipment is used for about 3 months (depending on the actual frequency of use), the rotating parts need to be filled with grease once;
2. Check the working status of the pin shaft regularly every month. If the pin shaft and screws are found to be loose, they must be tightened to prevent accidents caused by the pin shaft and screws falling off.
3. Hydraulic oil should be kept clean and replaced every 6 months or so;
4. When repairing, maintaining and cleaning the hydraulic lift, be sure to prop up the safety support bar.

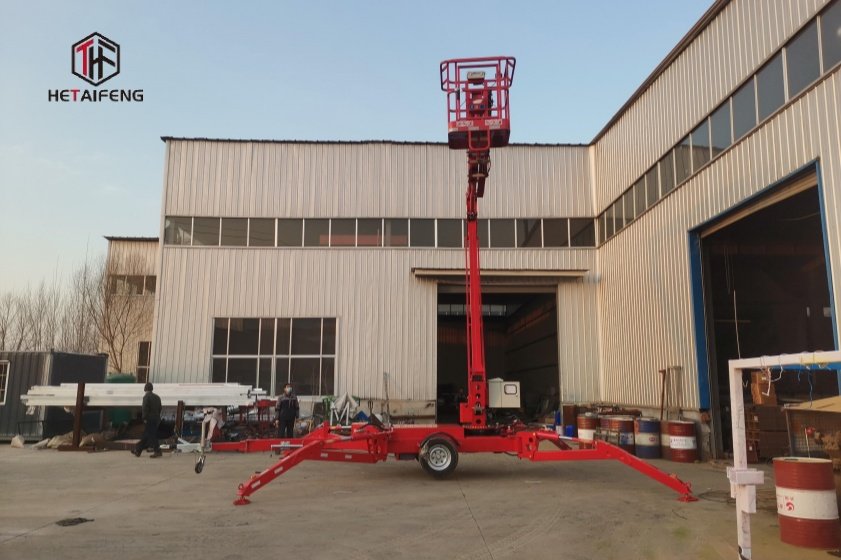

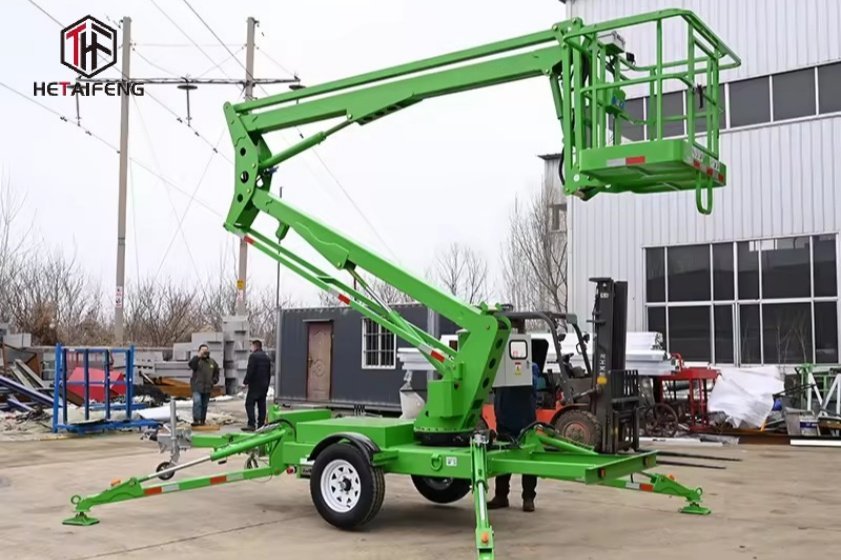

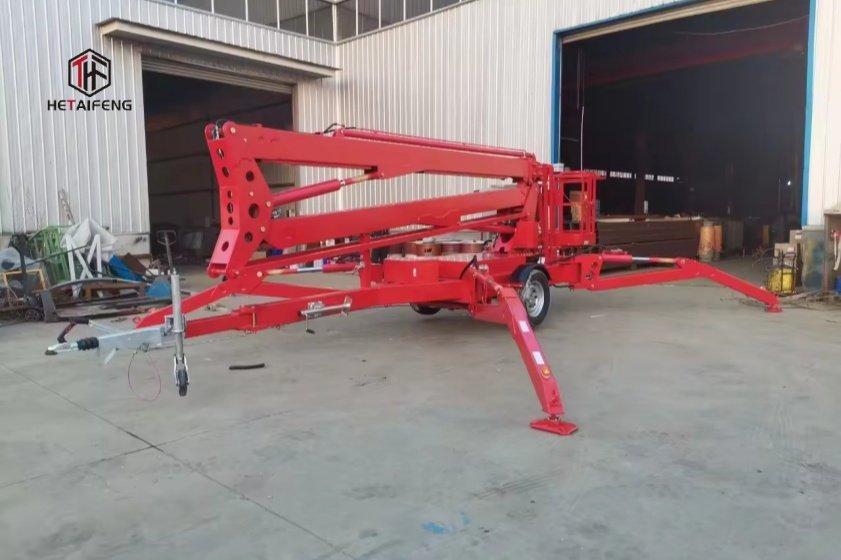

Trailer mounted spider Lift is specifically designed for those horizontal and verticalhard-to-reach high-up, aerial working jobs.This type of machine could be easily towed by tractors,forklifts and other towing vehicles,from one place to another, it could be powered by the battery group,diesel engine andlocal 3 phases AC power supply.
Photos:
Parameter:
| PRODUCT PARAMETERS | ||||||
| Model | HTF.2-8 | HTF.2-10 | HTF.2-12 | HTF.2-14 | HTF.2-16 | HTF.2-18 |
| Platform height | 8m | 10m | 12 m | 14 m | 16m | 18m |
| Working height | 10m | 12 m | 14 m | 16m | 18 m | 20m |
| Load capacity | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg |
| Platform size | 900*700mm | 900*700mm | 900*700mm | 900*700mm | 900*700mm | 900*700mm |
| Dimensions(mm) | 5400*1600 *900 | 5400*1600 *900 | 5800*1800 *2200 | 6550*1660 *2130 | 7000*1800 *2250 | 7200*1800 *2300 |
| Weight | 1600 kg | 1600 kg | 1800 kg | 2500 kg | 2800 kg | 3800 kg |
| Telescopic boom | No | No | Yes | Yes | Yes | Yes |
| Working radius | 4.5m | 5.5m | 7.5m | 8.5m | 10m | 11.5m |
