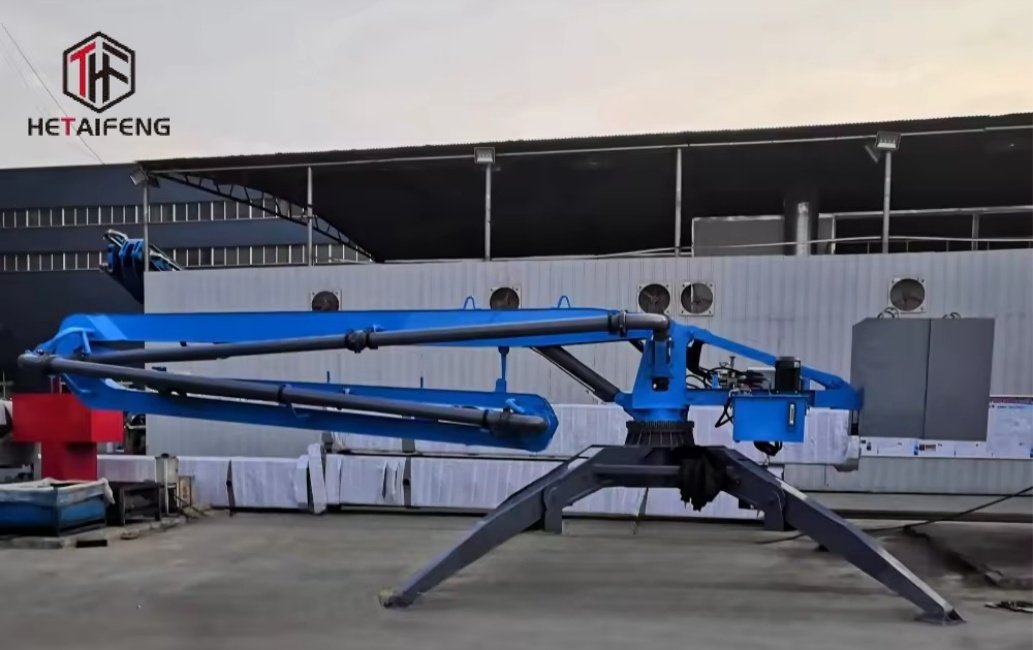

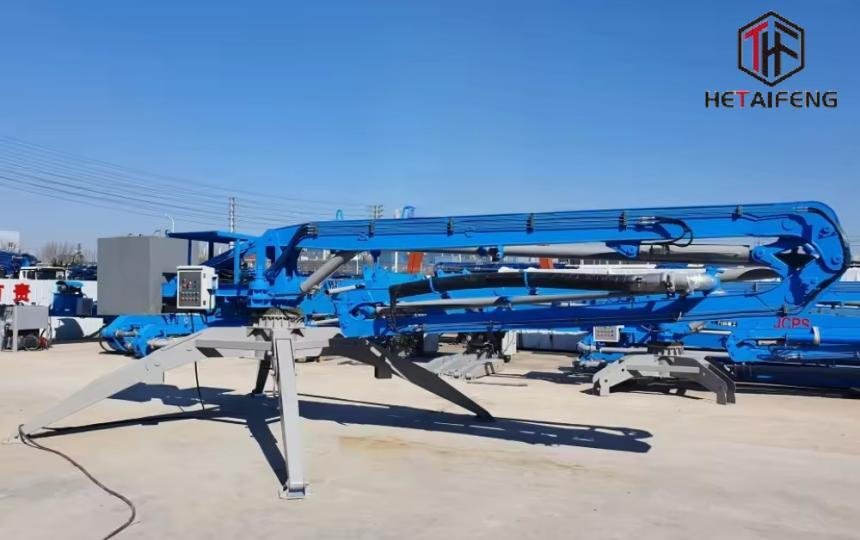

HGY15 HGY17 are mobile concrete placing boom with concrete placing radius 15m and 17m, used for placing concrete onto certain place of certain floor, which is good partner with trailer concrete pump.
Concrete placing boom is a new product developed for enlarging the range of concrete pouring and improving the mechanization level of pumping construction. Being corollary equipment of concrete pump, it increases the range of concrete pumping by connecting with concrete pump; also, in effectively solving the hard problem of material distribution in wall pouring, it plays an important role in increasing construction efficiency and reducing labor intensity. This kind of concrete placing boom is reasonably designed, with stable and reliable structure, and the whole machine can be easily operated and flexibly turned due to its all direction and boom-type distributing structure, featuring character of high efficiency and energy-saving, as well as being economical and practical, etc.
PHOTOS:
Parameter:
Artículo | HGY-15 | HGY-17 | HGY-18 |
Radio de colocación máximo | 15 m | 17 m | 18 m |
Gran longitud de brazo | 6 millones | 6,66 millones | 7.66 |
Longitud de brazo media | 5 m | 5,73 m | 5.73 |
Longitud de brazo pequeña | 4 millones | 4,61 millones | 4.61 |
Elevación de brazos grandes | 0-70° | 0-70° | 0-65 |
Elevación media del brazo | 0-180° | 0-180° | 0-180 |
Elevación de brazo pequeño | 0-180° | 0-180° | 0-180 |
Radio de giro de la cola | 2,81 millones | 3,5 m | 3.93 |
Presión máxima de entrega teórica | 24 MPa | 25 MPa | 24 MPa |
Rango de rotación | 360° | 360° | 360° |
Altura total | 2,6 millones | 3,2 m | 3,9 millones |
Diámetro interior del tubo de descarga | 125 mm | 125 mm | 125 mm |
Tensión nominal | 380 V | 380 V | 380 V |
Potencia total | 4KW | 5,5 kW | 5,5 kW |
Revolución calificada | 0,3-0,8 rpm | 0,3-0,8 rpm | 0,3-0,8 rpm |
Tipo de circuito de aceite hidráulico | Circuito abierto | Circuito abierto | Circuito abierto |
Tipo de aceite hidráulico | HM-N46 | HM-N46 | HM-N46 |
Diámetro máximo permitido del agregado | 40MM | 40MM | 40MM |
Longitud de la manguera de goma | 3M | 3M | 3M |
Peso (peso propio) | 3300 kg | 5000 kilos | 6700 kg |
Peso(peso total) | 5500 kg | 7200 kg | 8900 kg |
