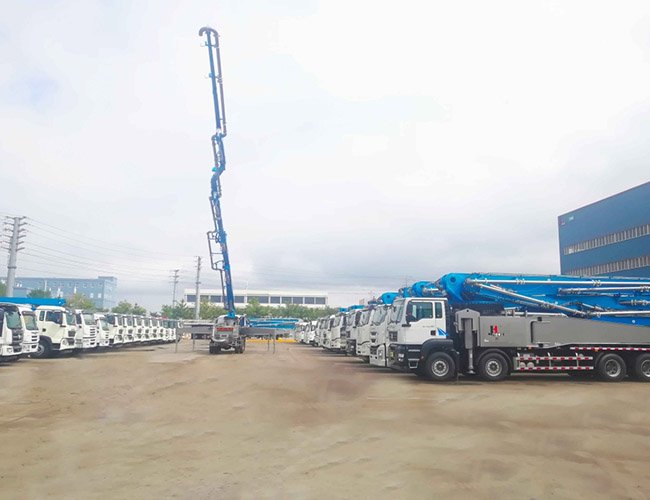

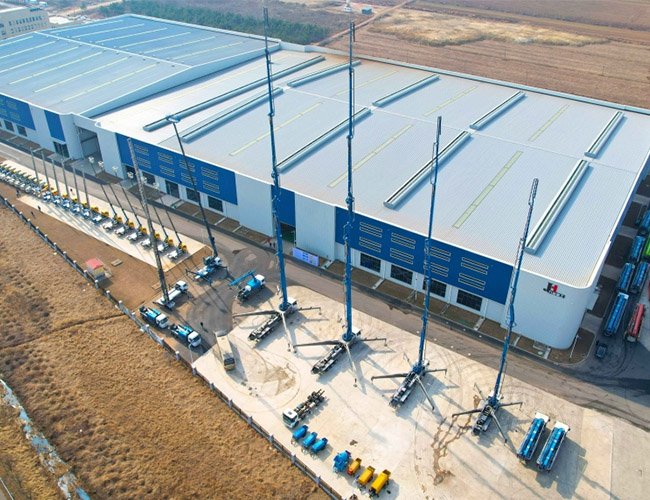

HeTaiFeng concrete pump trucks are competitive products designed by HeTaiFeng MACHINERY. It is highly reliable, highly efficient, highly secure, and highly durable at an organic whole, with reasonable matching on the Chassis, power, electrical, hydraulic, and pumping system. Jib structures are flexible, and the trucks move easily, safely, and stablely.
HeTaiFeng concrete pump trucks are competitive products designed by HeTaiFeng MACHINERY. It is highly reliable, highly efficient, highly secure, and highly durable at an organic whole, with reasonable matching on the Chassis, power, electrical, hydraulic, and pumping system. Jib structures are flexible, and the trucks move easily, safely, and stablely.
Intelligence
Full hydraulic control technology
Fast fault location, saving time more than 50% in fault detection.
Electric control system
Intelligent electric control system, simple structure, reducing electric faults.
Safety
Hydraulic oil level Auto-detection and radiating technology
Auto-detect hydraulic oil and temperature, protecting the hydraulic system.
Intelligent safety technology
All weld lines by 100% nondestructive flaw detection.
High efficiency
Full hydraulic commutation technology
Commutation time 10% lower, pumping eficiency 20% higher.
Advance Jib structure technology
Flexible and efficient placing, no blind angle.
Specification:
38m Pump truck | ||
Chassis | ||
1 | Chassis | SINOTRUK HOWO 6x4 |
2 | Engine model | Mc07.31-50 |
3 | Engine power | 310HP |
4 | Wheelbase | 4600+1350 |
5 | Tire | 12.00R20 |
6 | Emission standards | National V |
7 | Cab | Left cab |
Boom system | ||
1 |
Maximum vertical height of boom (M) | 38 |
2 | Horizontal distribution radius of boom (M) | 34 |
3 | Boom arm number | 6 sections |
4 | Depth of distribution (M) | 25.7 |
5 | Rotating angle of each arm | 90°/180°/180°/235°/235° |
6 | First arm length(MM) | 7800 |
7 | Second arm length(MM) | 6500 |
8 | Third arm length(MM) | 6250 |
9 | Forth arm length(MM) | 6700 |
10 | Fifth arm length(MM) | 6700 |
11 | Boom open height(M) | 7.5 |
12 | Control mode of boom | Electric proportion |
13 | Folding type of boom | RZ type |
14 | Rotating angle of the turret | 470° |
15 | Span distance of front landing leg (MM) | 6250 |
16 | Span distance of rear landing leg (MM) | 7500 |
17 | Longitudinal distance between front and rear landing leg (MM) | 6947 |
18 | Opening mode of the landing leg | X-R |
19 | Length of end hose (MM) | 3000 |
20 | Diameter of concrete delivery pipe (MM) | 125 |
Electric Control System | ||
1 | Working voltage: | 24 |
2 | Power Supply | 24 |
3 | Relay | SIEMENS |
4 | Wireless Remote Controller | OHM |
5 | Electric parts | Schneider |
Hydraulic transmission system | ||
1 | Type of hydraulic system |
Open type |
2 | System working pressure (Mpa) | 31.5 |
3 | Main Hydraulic Pump | PUSHI |
4 | Displacement of the main hydraulic oil pump (ml/r) | 180/190 |
5 | Multi-Way Valve | Italy Commer |
6 | Boom Counterbalance Valve | Germany HBS |
7 | Hydraulic Hose | Eaton |
8 | Hose Joint | Eaton |
9 | Hydraulic fuel tank capacity (l) | 420 |
10 | Cooling mode of hydraulic oil | Forced-air Cooling |
11 | High-low pressure changeover valve | None |
DIMENSIONS&WEIGHT | ||
1 | Total length (MM) | 11055 |
2 | Total width (MM) | 2500 |
3 | Total height (MM) | 3830 |
4 | Total weight (T) | 26 |
Pumping system | ||
1 | Max.Theoretical Output | 100 |
2 | Form of concrete distribution valve | S valve |
3 | Maximum concrete outlet pressure (Mpa) | 10.5 |
4 | Reversing times of distribution valve | 24 |
5 | Inner diameter/stroke of delivery cylinder | 230/1650 |
6 | Maximum feeding height (MM) | 1450 |
7 | Hopper capacity (M3 ) | 0.65 |
8 | Slump of pumped concrete | 80-220 |
9 | Dimension of allowable maximum aggregate (MM) | 40 |
10 | Lubricating method | Centralized lubrication |
