48MVK Aerial Platform Truck

93a004740f74c1b00b8ffb2a78e917e
Product Details

      Hetaifeng aerial work vehicle is a new product of Hetaifeng Group, which integrates multiple functions in one, and its specifications and performance are better than similar domestic products. The main features are as follows:

1. Light weight and small size Light weight: According to the report of China Automobile Association, for every 10% reduction in vehicle weight, fuel efficiency can be increased by 6%-8%, and fuel consumption can be reduced by 7%; for every 100KG reduction in vehicle weight, fuel consumption per 100 kilometers can reach 0.3-0.6L, which is 40% lighter than traditional trucks, and the economy is improved by at least 28%; the whole vehicle boom lift is small in size and can adapt to narrow work sites, with flexible maneuverability, compact structure, low center of gravity and higher stability

2. Excellent performance and wider operating range Hetaifeng aerial work vehicle for sale, with a maximum working height of 30m, and operating specifications are better than similar domestic products. This machine adopts three-section telescopic arms to extend and retract at the same time, with simple movements, easy operation, rapid movement and wide working range; the working platform is rear-mounted, and the platform is equipped with pedals to facilitate workers to get on and off.

3. Wireless remote control, comfortable and convenient one-handed operation. Wireless remote control technology ensures that operators can operate flexibly and conveniently in narrow working places, eliminates blind spots, provides better working vision, and prevents operators from enduring excessively cold or hot weather. Operators can choose a suitable location to complete operations; all major operations can be completed with one hand.

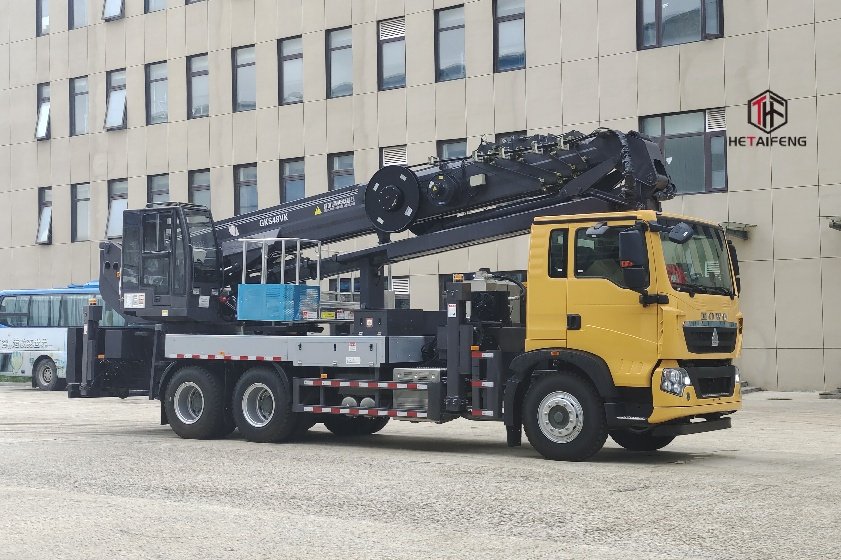

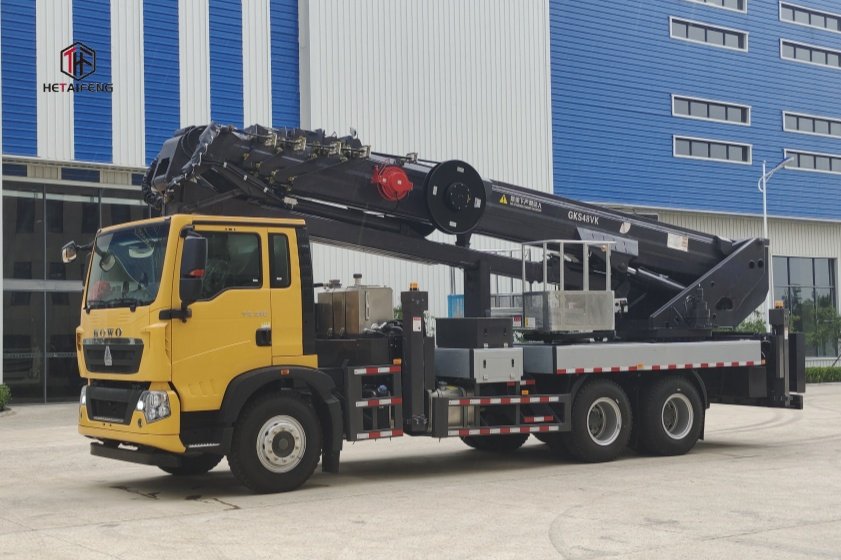

PHOTOS:


Parameter:


Category

Item

Unit

Detail Data

Size parameters

Total length

mm

10035

Total width

mm

2500

Total height

mm

4000

Weight parameters

Total passengers

person

3

Total weight

kg

23000

Performance parameters

Rated load of working platform

kg

400

Work platform size

mm

3200x1100x1145

Boom type

-

5 + 2 Telescopic composite boom

Max. working height

m

48

Working range at max. working height

m

7.4

Max. working range

m

27.5

Working height at max. working range

m

35.5

Rotary angle of turntable

Any angle

Working platform rotation angle

±360

Driving parameters

Front overhang/rear overhang/rear protraction

mm

1430/3226/289

Wheel track Front/Rear

mm

1914/1860

Wheelbase

mm

5000

Max. driving speed

km/h

90

Min. ground clearance

mm

250

Approach/departure angle

23/9

Chassis

Chassis model


FAW/HOWO

Engine model

-

MC07.31-60

Max. engine power

kw

228

Emission standard

-

GB17691-2018 Euro 6

Fuel type


Diesel

Brake system

-

Air brake
